- One-piece construction – No joins or seams to fail, helping minimise the risk of leaks.
- Precision-machined 1:80 fall to the waste – Designed to support compliant drainage performance.
- Integrated wall lip system – Helps protect wall cavities by directing water back into the shower area.
- Custom sizes available – Manufactured to suit your project requirements up to 1150mm × 1950mm.
- Strong yet lightweight – Easy to handle without compromising strength.
- Maintenance free – Built for long-term performance with minimal upkeep.
- Simple installation – Designed with an easy plumbing connection to streamline installation.
- Versatile installation – Suitable for masonry, timber, compressed fibre cement (CFC) and steel frame construction.
Each shower tray is supplied with integrated wall lips on all four sides. Where level-entry or open-entry installations are required, the unnecessary lips can simply be trimmed off to suit your application.
Three waterproof flashing sections are also supplied for wall sides and can be trimmed during installation where required.
Our trays are manufactured with an oversized machined waste recess for the standard puddle flange outlet option, while the waste outlet hole itself is intentionally left uncut. This allows the installer to position the waste anywhere within the machined recess, providing greater flexibility to suit on-site plumbing locations.
All Wet Area Solutions tile-over shower trays are manufactured as a single-piece unit with a precision-machined fall to the waste and are designed for installation in accordance with AS 3740 waterproofing requirements.

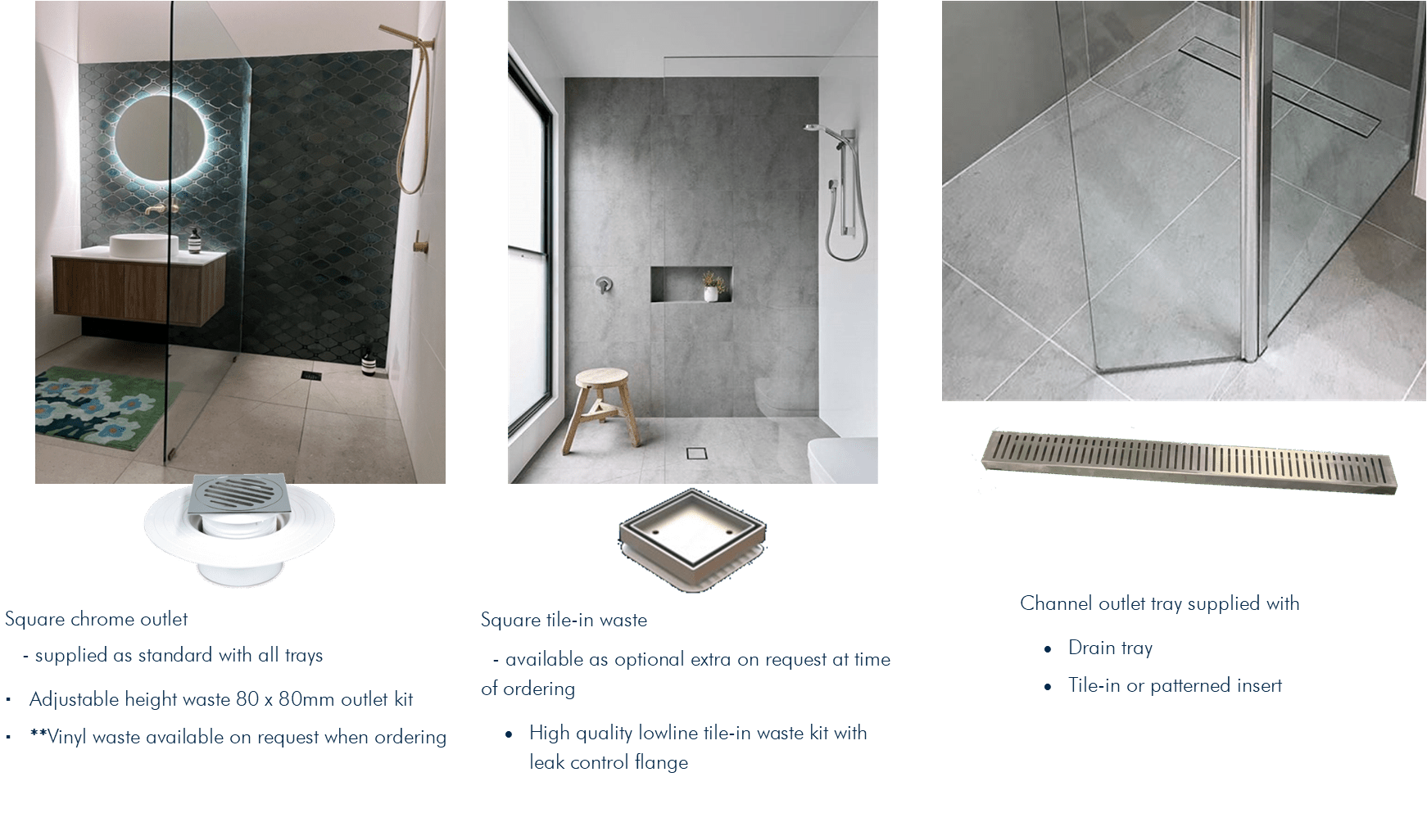

Outlet options
Standard puddle flange option
Included as Standard
Our standard 80 × 80mm chrome outlet kit is supplied with every tile-over shower tray and includes an adjustable-height waste and puddle flange for a simple, reliable installation.
Features
- Adjustable height 80 × 80mm waste outlet
- Includes waterproofing puddle flange
- Compatible with our precision-machined waste recess
- Optional vinyl waste available upon request when ordering
Square tile insert
Optional Upgrade
Create a seamless, minimalist shower floor with our premium tile-in waste. Designed to blend effortlessly into your tiled surface, it delivers a clean architectural finish while maintaining exceptional drainage performance.
Available Finishes
- Chrome
- Polished Brass
- Brushed Gold
- Brushed Nickel
- Matt Black
Available as an optional upgrade at the time of ordering.
Channel option
Modern Linear Drainage
For contemporary bathrooms, our linear channel waste provides a sleek, premium finish while offering excellent drainage performance. Perfect for creating a modern, open shower aesthetic.
Supplied With
- Stainless steel channel drain tray
- Choice of tile-in insert or patterned grate
- Precision-engineered for reliable water flow
- Ideal for contemporary bathroom designs
Every tile-over shower tray is manufactured to order, giving you complete design flexibility. Our unique production process allows us to create fully customised trays to suit your project, including angled walls, corner entries, and curved shower screens.
Custom shower trays can be manufactured in virtually any configuration, with sizes available up to 1150 × 1950 mm.
Need something unique?
Contact our team to discuss your custom shower tray requirements.
Our tile-over trays are manufactured with a 60mm overall profile, including the integrated lip system.
Refer to the technical drawings for the finished tray thickness after any unnecessary lips have been trimmed to suit your installation.
Final tray thickness will vary depending on the tray size, outlet type and outlet position.
Getting a quote
As every tile-over shower tray is custom manufactured to your specifications, a completed quote form is required for all quote requests and orders.
This ensures all essential details—including your tray size, outlet position, outlet type and any custom requirements—are accurately captured, allowing us to manufacture your tile-over shower tray exactly to your project specifications.
If you require delivery, please ensure your delivery address is included on the quote form.
We recommend reviewing all of the information on this page before submitting your quote request to ensure you select the most suitable configuration for your project.
Quote form
Please ensure you fill out this form and email it to us to receive a quote.
Installation guide
Take a look at our installation guide.
Upload your quote request form
You can upload up to 5 different quote requests at a time.
All Jpeg formats and PDF formats can be uploaded.
